TRUCKCOOL 12V 100Ah Lithium Battery TC-D12100
Model: TC-D12100
Product Highlights
The Fleet Owner's Problem: The High Cost of "Comfort"
Your drivers need power for A/C, heat, and their appliances. But the cost is killing you. You're either burning over a gallon of diesel per hour idling the engine, or you're constantly replacing cheap lead-acid batteries that die in the cold and can't handle deep discharges. Both options cost you thousands per truck, per year in fuel and downtime.
You need a dedicated power solution, not another problem. The TRUCKCOOL TC-D12100 is engineered to do one job perfectly: deliver clean, long-lasting power to your sleeper cab, saving you money every single day.
Your Business Benefits: The TC-D12100 Advantage 📈
1. Massive Fuel Savings & ROI.
The TC-D12100 provides 1280 Wh of power—more than enough to run cab essentials all night without idling. The fuel savings alone can deliver a return on your investment in just a few months.
2. Install It and Forget It (for 10 Years).
With a true cycle life of more than 3,500 cycles, this battery is built to last over a decade. That’s 8-10x longer than the lead-acid batteries you're tired of replacing. Plus, at only 23.8 lbs, installation is a breeze.
3. The Most Cost-Effective Power Upgrade.
If your truck's starting system is already reliable, you don't need to pay extra for a dual-purpose battery. The TC-D12100 gives you all the eAPU power you need at a significantly lower price point, making it the smartest financial decision for your fleet.
Is the TC-D12100 Right for Your Fleet?
This battery is the perfect choice if:
- ✅ You want to eliminate engine idling to save fuel.
- ✅ You need reliable power for A/C, microwaves, CPAP machines, etc.
- ✅ Your truck's existing starting batteries are in good condition.
☕ Power Your Entire Cab: Real-World Capability
The TRUCKCOOL TC-D12100 is a dedicated power plant. When connected in parallel and paired with our pure sine wave inverter, it can easily power your air conditioner and another high-draw appliance like a coffee maker or microwave. It’s the key to providing drivers the comfort and convenience that keeps them on your team.
Safety Note: For the protection of your A/C unit, electronics, and the battery itself, we strongly recommend using a TRUCKCOOL pure sine wave inverter. Contact us for a complete power package deal.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TRUCKCOOL TC-D12100 (XAM 100-12-100 ) |
| Voltage | 12.8VDC |
| Capacity | 100Ah (1280Wh) |
| Dimensions | 332176226mm |
| Weight | 10kg |
| Chemical | Lithium Iron LiFePO4 |
| Cell Type | Prismatic |
| Box Material | ABS121H |
| Terminal Type | M8 Brass |
| Waterproof Level | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Max Continuous Current | 120A |
| Max Series Voltage | 51.2V |
| Low Voltage Cut-Off | 10.5V |
| High Voltage Protection | 14.8V |
| Short Circuit Protection | 250A |
| Max 30s Pulse | 120A |
| Cycle life (100% DoD) | ≥ 2000 Cycles |
| Cycle life (80% DoD) | ≥ 3500 Cycles |
| Cycle life (50% DoD) | ≥ 6000 Cycles |
| Cycle life (30% DoD) | ≥ 8000 Cycles |
| Active Cell Balancing | 5Ah Nominal, 8Ah Peak (Charge & Discharge) |
| BMS Pulse Power | 100A 1920W |
| BMS Reconnect | Automatic 18s |
| Recommended Charge Current | 30A |
| Standard Discharge Current | 100A (0.5C) |
Lithium Iron Phosphate Battery
332*176*226mm
Widely used in RV, yacht, golf cart, trailer, camper, UPS, solar energy storage, ….
Features:

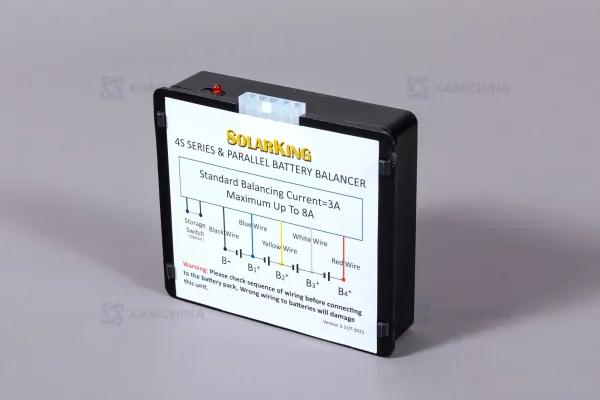

- Built-in advanced BMS & active cell balancer.
- Automatic recovery from overcharge & overdischarge.
- 3 stage current, timing & temperature protection.
- Big capacity: 12.8V 100Ah 1280Wh.
- More than 3000 deep cycles. Nearly 4 times of lead acid batteries.
- Good performance in high or low temperatures.
Note:
- This battery CAN’T be used to start motor vehicles.
- Please pay attention to clean the positive and negative electrodes regularly to ensure good contact.
- For a longer life span of the battery, please make a full charge every 3 months.
- During use, pay attention to moisture-proof, waterproof and keep away from ignition sources.
- During use, please follow the parameters and conditions of use, otherwise the battery may be damaged.
Get a Quote for Your Fleet
Ready to make the smart investment in your fleet's efficiency and driver comfort? The TC-D12100 is our best-selling APU battery in North America for a reason.
Call us for special fleet pricing and shipping quotes. We're here to help you build the perfect, cost-effective power solution.
Common Questions
Frequently asked questions about this product category.
🔋 What exactly is a 12V LiFePO₄ Parking Battery?
It’s the heart of a modern no-idle system—a dedicated power source for all your truck’s hotel loads.
Unlike starter batteries designed for a quick burst of power, our 12V Lithium Iron Phosphate (LiFePO₄) parking batteries are deep-cycle powerhouses. They are engineered to safely provide hours of continuous energy for your parking air conditioner, microwave, and electronics, all without needing to idle your engine.
🤔 How do I choose the right size battery for my parking cooler?
It's simple. Match the battery capacity to your typical rest time.
- For Shorter, Daytime Stops (a few hours): A single 200Ah battery or a parallel bank of two 100Ah batteries is often a perfect, cost-effective solution.
- For Full Overnight Comfort (8-10+ hours): We recommend a larger capacity bank, starting from 300Ah and up, to ensure you have plenty of power for A/C all night long, even in hot climates.
